The RT9818 is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. It provides internally fixed threshold levels with 0.1V per step ranging from 1.2V to 5V, which covers most digital applications. It features low supply current of 3μA. The RT9818 performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered upcrossing the threshold level, the reset signal will be released after a certain delay time. RT9818 is provided in SC-82, SC-70-3, SOT-23-3, SOT-23-5 and SOT-89 packages.

Applications

  • Computers
  • Controllers
  • Intelligent Instruments
  • Critical μP and μC Power Monitoring
  • Portable/Battery-Powered Equipment
Key Spec.
RT9818A RT9818B RT9818C RT9818D RT9818E RT9818F RT9818G
Status Active Active Active Active Active Active Active
Vin (min) (V) 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Vin (max) (V) 6 6 6 6 6 6 6
VTH (min) (V) 1.2 1.2 1.2 1.2 1.2 1.2 1.2
VTH (max) (V) 5 5 5 5 5 5 5
Accuracy (±%) 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Reset Active Type Low(Open Drain) Low Low Low High High High
Reset Time-out Period (typ) (ms) 0 55 220 450 0 55 220
Reset Delay Time (typ) (ms) 0.02 0.02 0.02 0.02 0.02 0.02 0.02
Package Type SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89 SOT-23;SOT-25;SC-70-3;SC-82;SOT-89
Features
  • Internally Fixed Threshold 1.2V to 5V in 0.1V Step
  • High Accuracy ±1.5%
  • Low Supply Current 3μA
  • No External Components Required
  • Quick Reset within 20μs
  • Built-in Recovery Delay Include 0ms, 55ms, 220ms, 450ms Options
  • Low Functional Supply Voltage 0.9V
  • N-Channel Open-Drain Output
  • Small SC-82, SC-70-3, SOT-23-3, SOT-23-5, SOT-89 Packages
  • RoHS Compliant and 100% Lead (Pb)-Free
Datasheet
TitleVersionLast UpdateDownload
RT9818: Micro-Power Voltage DetectorsV11.02015/04/29
Technical Documents
TitleItem TypeLast UpdateDownload
Richtek Product Selection Guide [Jan., 2024] Selection Guide2024/01/18
Power Management for Video Doorbell App. Note2021/10/08

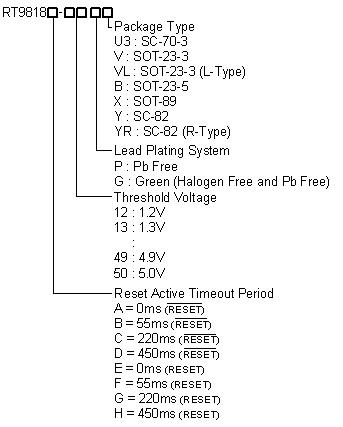

Part NumberPackage TypePackage Qty.Free SampleDistributorStockBuy From Authorized Distributor
RT9818A-27GVSOT-233,000 Request Digikey 2,909 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818A-28GVSOT-233,000 Request Digikey 2,675 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818A-30GBSOT-253,000 Request Digikey 1,985 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818A-30GVSOT-233,000 Request Digikey 3,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818B-18GVSOT-233,000 Request Digikey 6,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818B-35GBSOT-253,000 Request Digikey 3,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-18GVSOT-233,000 Request Digikey 4,713 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-25GVSOT-233,000 Request Digikey 2,218 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-27GU3SC-70-33,000 Request Digikey 6,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-27GVSOT-233,000 Request Digikey 40,758 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-29GVSOT-233,000 Request Digikey 39,213 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-29GVLSOT-233,000 Request Digikey 3,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-30GVSOT-233,000 Request Digikey 8,817 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-30GVLSOT-233,000 Request Digikey 2,015 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-42GVSOT-233,000 Request Digikey 7,557 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818C-44GVSOT-233,000 Request Digikey 3,000 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818D-27GVSOT-233,000 Request Digikey 2,490 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818E-27GBSOT-253,000 Request Digikey 5,975 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818G-30GVLSOT-233,000 Request Digikey 2,972 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT9818G-33GVLSOT-233,000 Request Digikey 2,924 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
Please confirm with our distributor or sales representative for actual stock status.
