The RT9063 is a low-dropout (LDO) linear regulator that features high input voltage, low dropout voltage, ultra-low operating current, and miniaturized packaging. With quiescent current as low as 1μA, the RT9063 is ideal for battery-powered equipment.

The RT9063's stability requirements are easily met with all types of output capacitors, including tiny ceramic capacitors, over its wide input range and its load current range (0mA to 250mA). The RT9063 offers standard output voltages of 1.2V, 1.5V, 1.8V, 2.5V and 3.3V.

Applications

  • Portable, Battery Powered Equipment
  • Ultra Low Power Microcontrollers
Key Spec.
RT9063
Status Active
Vin (min) (V) 2.5
Vin (max) (V) 6
Vout (min) (V) 1.2
Vout (max) (V) 3.3
Output Adj. Method Fixed
Accuracy (+/- %) 2
Iout (max) (mA) 250
Iq (typ) (uA) 1
Vdropout @ rated current (typ) (mV) 400 @ 0.2A
Cout Type Ceramic;Tantalum
Features Low Dropout;Stable with Ceramic Capacitor
Package Type SOT-23;SOT-89
Features
  • 1μA Quiescent Current
  • ±2% Output Accuracy
  • 250mA Output Current
  • Dropout Voltage : 0.4V at 200mA

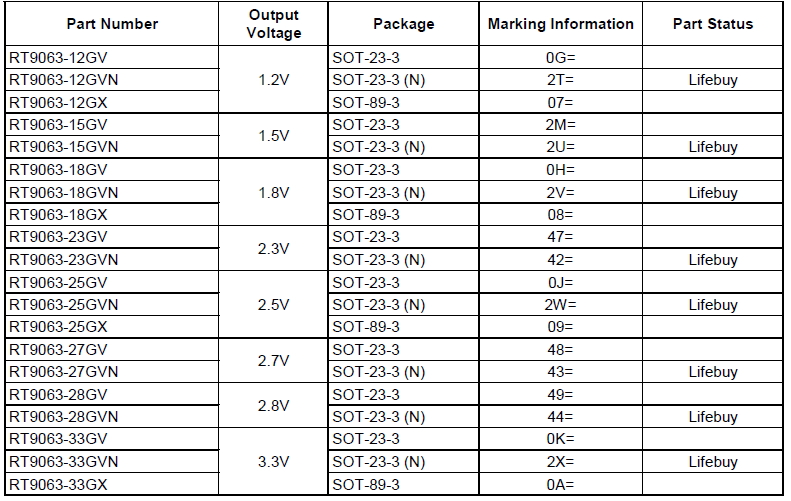

  • Fixed Output Voltage 1.2V/1.5V/1.8V/2.5V/3.3V
  • Stable with Ceramic or Tantalum Capacitor
  • Current Limit Protection
  • Over-Temperature Protection
  • SOT-23-3, SOT-89-3 Packages
  • RoHS Compliant and Halogen Free
Videos
TitleLast UpdateViews
Low Iq LDOs2015/03/18145
Additional Documents
Title Last Update ShareDownload
Power Management Introduction and Selection Guide 2020/12/07
Power Management Components for Lithium-Ion Battery Powered Applications
鋰離子電池電源管理IC選擇指南 		2020/12/07
Please confirm with our distributor or sales representative for actual stock status.
