The RT9532 is a fully integrated single cell Li-ion battery charger IC ideal for portable applications. The RT9532 optimizes the charging task by using a control algorithm including pre-charge mode, fast charge mode and constant voltage mode. the input voltage range of the VIN pin can be as high as 28V. When the input voltage exceeds the OVP threshold, it will turn off the charging MOSFET to avoid overheating of the chip.

In RT9532, the maximum charging current can be programmed with an external resistor. For USB application, the user can set the current to 100mA/500mA through the EN/SET pin. For the factory mode, the RT9532 can allow 4.2V/2.3A power pass through to support system operation. It also provides a 50mA LDO to support the power of peripheral circuit. The internal thermal feedback circuit regulates the die temperature to optimize the charge rate for all ambient temperatures. The RT9532 provides protection functions such as under voltage protection, over voltage protection for VIN supply and thermal protection for battery temperature.

The RT9532 is available in a WDFN-10L 3x2 package to achieve optimized solution for PCB space and thermal considerations.

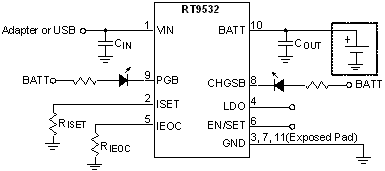

Applications

  • Cellular Phones
  • Digital Cameras
  • PDAs and Smart Phones
  • Protable Instruments
Datasheet
TitleLast UpdateDownload
Linear Single Cell Li-Ion Battery Charger IC for Portable Applications2012/02/17
Additional Documents
Title Last Update ShareDownload
Power Management Components for Lithium-Ion Battery Powered Applications
鋰離子電池電源管理IC選擇指南
2020/12/07
Part NumberPackage TypePackage Qty.Free SampleBuy From Authorized Distributor
RT9532GQWWDFN3x2-101500 Request Buy from Distributor
