RT6515

10-Bit Programmable Gamma Reference for TFT-LCD Panel

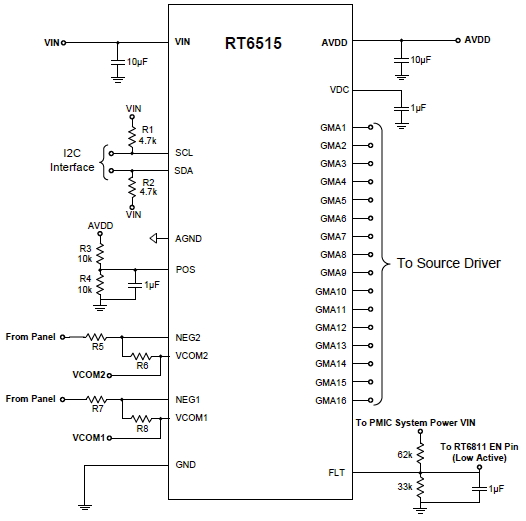

The RT6515 is a 400kHz I2C interface programmable gamma reference for LCD application. The IC provides 16-CH gamma corrections under 10-bit resolution and 2-CH VCOM Operational Amplifier. The RT6515 can operate with up to 18V maximum analog supply voltage and provides OCP, OTP function to protect IC. The RT6515 is available in a WQFN-32L 5x5 package.

Applications

TFT-LCD Panels

Key Spec.
	RT6515
Status	Active
Vin (min) (V)	6.5
Vin (max) (V)	18
Number of Channels	16
Number of Buck Converters	0
Number of Boost Converters	0
Number of Negative Outputs	0
Number of LED Drivers	0
Number of LDO Regulators	0
Application	LCD Bias
Features	I2C;OCP;OVP;SCP

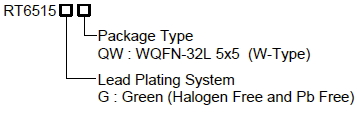

Package Type	WQFN5x5-32

Features

400kHz I²C Interface
Integrated MTP Memory
16-CH Gamma Correction
2-CH VCOM Operational Amplifier
10-Bit Resolution for Gamma
18V Maximum Analog Supply Voltage
Over Temperature Protection
Over Current Protection

Datasheet
Title	Last Update	Download
10-Bit Programmable Gamma Reference for TFT-LCD Panel	2022/08/11

Please confirm with our distributor or sales representative for actual stock status.
