The RT3624BE is a synchronous buck controller which supports 2 output rails and can fully meet Intel IMVP9.1 requirements. The RT3624BE adopts G-NAVPTM (Green Native AVP) which is Richtek′s proprietary topology derived from finite DC gain of EA amplifier with current mode control, making it easy to set the droop to meet all Intel CPU requirements of AVP (Adaptive Voltage Positioning). Based on the G-NAVPTM topology, the RT3624BE features a new generation of quick response mechanism (Adaptive Quick Response, AQR) to optimize AVP performance during load transient and reduce output capacitors. The RT3624BE integrates a high accuracy ADC for platform and function settings, such as ICCMAX, switching frequency or AQR trigger level. The RT3624BE provides VR Ready and thermal indicators. It also features complete fault protection functions including over-voltage (OV), under-voltage (UV), over-current (OC) and under-voltage lockout (UVLO).

Applications

  • IMVP9.1 Intel CORE/AXG Supply
  • Desktop and Notebook Computer
  • AVP Step-Down Converter
Key Spec.
RT3624BE
Status Active
VID Table Support IMVP9.1
Number of Phases 2;4
Vcc (typ) (V) 5
Vin (min) (V) 4.5
Vin (max) (V) 24
Accuracy (Vout>=1V) (+/- %) 0.5
Freq (typ) (kHz) 600
Built-in DAC Generator Yes
Number of MOSFET Drivers 0
Features Adjustable Frequency;Cycle-by-Cycle Current Limit;DCR Current Sense;Diode Emulation Mode;Droop Control;Enable Input;Fast Transient Response;G-NAVP Control;OCP;OVP;Power Good;Stable with Ceramic Capacitor;UVP

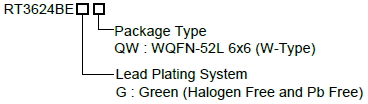

Package Type WQFN6x6-52
Features
  • Intel IMVP9.1 Compliant

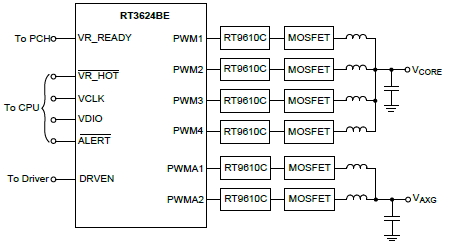

  • 4/3/2/1 Phase (CORE VR) + 2/1 Phase (AXG VR) PWM Controller
  • G-NAVPTM (Green Native Adaptive Voltage Positioning) Topology
  • 0.5% DAC Accuracy
  • Differential Remote Voltage Sensing
  • Built-in ADC for Platform Programming and Reporting
  • Accurate Current Balance
  • Diode Emulation Mode at Light Load Condition
  • Fast Transient Response : Adaptive Quick Response (AQR)
  • VR Ready Indicator
  • OVP, OCP, UVP with Flag
  • Switching Frequency Setting
  • DVID Enhancement
  • Acoustic Noise Suppression
  • Zero Load-line
  • Rail Disable
  • Support Phase Doubler RT9637 for CORE Rail Up to 6-Phase Operation (optional)
  • Support SPS Application (optional)
  • Soldering Good Detection
  • RT3624BE : Support Address 00 and 01
  • Small 52-Lead WQFN Package
Please confirm with our distributor or sales representative for actual stock status.
