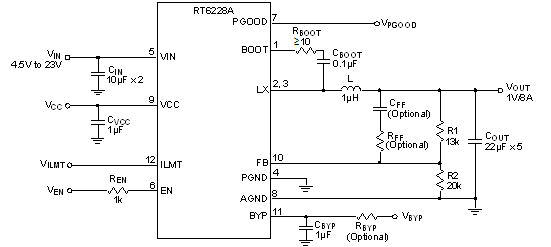

The RT6228A/B/C is an advanced constant on-time (ACOT®) mode synchronous buck converter. The main control loop of the RT6228A/B/C using an advanced constant on-time (ACOT®) mode control which provides a very fast transient response. The RT6228A/B operates from 4.5V to 23V input voltage and the RT6228C operates from 5.1V to 23V. For the RT6228A, the output voltage can be programmed between 0.6V to 5.1V.

Applications

  • Industrial and Commercial Low Power Systems
  • Computer Peripherals
  • LCD Monitors and TVs
  • Green Electronics/Appliances
  • Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs
Key Spec.
RT6228A RT6228B RT6228C
Status Active Active Active
Vin (min) (V) 4.5 4.5 5.1
Vin (max) (V) 23 23 23
Number of Outputs 1 1 1
Vout (min) (V) 0.6 3.267 5.049
Vout (max) (V) 5.1 3.333 5.151
Output Adj. Method Resistor Fixed Fixed
Iout (max) (A) 8 8 8
Current Limit (typ) (A) 12 12 10.4
Freq (typ) (kHz) 500 500 750
Ext Sync No No No
Ron_HS (typ) (mOhm) 20 20 20
Ron_LS (typ) (mOhm) 10 10 10
Iq (typ) (mA) 0.1 0.1 0.1
Features ACOT Control;Adjustable Current Limit;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control ACOT Control;Adjustable Current Limit;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;Internal Compensation;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control ACOT Control;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;Internal Compensation;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control
Package Type UQFN3x3-12H(FC) UQFN3x3-12H(FC) UQFN3x3-12H(FC)
Features
  • 4.5V to 23V (RT6228A/B) and 5.1V to 23V (RT6228C) Input Voltage Range 8A Output Current
  • ACOTTM Mode Performs Fast Transient Response
  • ACOTTM Architecture to Enable All MLCC Output Capacitor Usage
  • Fixed 750kHz (RT6228C) and 500kHz (RT6228A/B) Switching Frequency
  • High Efficient Internal Power MOSFET Switch- 20mΩ (High-Side) and 10mΩ (Low-Side)
  • Adjustable Output Voltage from 0.6V to 5.1V (RT6228A)
  • Fixed 3.3V (RT6228C) LDO Output Supplies 100mA
  • Pre-biased Soft-Start
  • Cycle-by-Cycle Over-Current Protection
  • Input Under-Voltage Lockout
  • Thermal Shutdown Protection
  • Output Over-/Under-Voltage Protection
  • Ultrasonic Mode (USM)
  • 300kHz CLK for External Charge Bump
Technical Documents
TitleItem TypeLast UpdateDownload
Richtek Product Selection Guide [Jan., 2024] Selection Guide2024/01/18
Richtek Featured Product Tree [Aug., 2023] Selection Guide2023/08/07
Reference Design
TitleLast UpdateDownload
Richtek Load Transient Tool2022/07/25
Part NumberPackage TypePackage Qty.Free SampleDistributorStockBuy From Authorized Distributor
RT6228AGQUFUQFN3x3-12H(FC)1,500 Request Digikey 1,476 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
RT6228CGQUFUQFN3x3-12H(FC)1,500 Request Digikey 1,456 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
Please confirm with our distributor or sales representative for actual stock status.
