The RT6212C/D is a high-efficiency, monolithic synchronous step-down DC-DC converter that can deliver up to 2A output current from a 4.5V to 18V input supply. The RT6212C/D adopts ACOT architecture to allow the transient response to be improved and keep in constant frequency. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. Fault conditions also include output under-voltage protection, output over-current protection, and thermal shutdown.

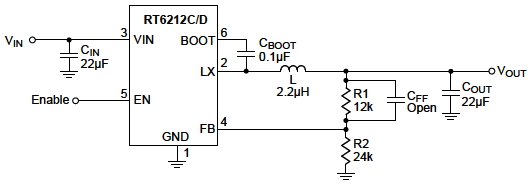

Applications

  • Set-Top Boxes
  • Portable TVs
  • Access Point Routers
  • DSL Modems
  • LCD TVs
Key Spec.
RT6212C RT6212D
Status Active Active
Vin (min) (V) 4.5 4.5
Vin (max) (V) 18 18
Number of Outputs 1 1
Vout (min) (V) 0.8 0.8
Vout (max) (V) 5 5
Output Adj. Method Resistor Resistor
Iout (max) (A) 2 2
Current Limit (typ) (A) 3.3 3.3
Freq (typ) (kHz) 800 800
Ext Sync No No
Ron_HS (typ) (mOhm) 163 163
Ron_LS (typ) (mOhm) 86 86
Iq (typ) (mA) 0.5 0.5
Features ACOT Control;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Internal Compensation;OCP;OTP;PSM ACOT Control;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Internal Compensation;OCP;OTP
Package Type TSOT-26(FC) TSOT-26(FC)
Features
  • Integrated 163mΩ/86mΩ MOSFETs
  • 4.5V to 18V Supply Voltage Range
  • 800kHz Switching Frequency
  • ACOT Control
  • Feedback Reference Voltage 0.8V ± 1.5%
  • Internal Start-Up into Pre-Biased Outputs
  • Compact Package : TSOT-23-6 Pin
  • Input Under-Voltage Lockout
  • Over-Current Protection and Hiccup
Datasheet
TitleLast UpdateDownload
2A, 18V, 800kHz, ACOTTM Step-Down Converter2017/04/27
Reference Design
TitleLast UpdateDownload
Richtek Load Transient Tool2022/07/25
