The RT5735 device is a full featured 5.5V, 5A, synchronous step down constant-on-time (COT) current mode converter with two integrated MOSFETs. The RT5735 enables small designs by integrating the MOSFETs, implementing current mode control to reduce external component count, reducing inductor size by enabling up to 2.4MHz switching frequency, and minimizing the IC footprint with a small WL-CSP-20B 1.6x2 (BSC) package. The RT5735 provides accurate regulation for a variety of loads with an accurate ±1% Voltage Reference (VREF) over temperature. Efficiency is maximized through the integrated 34mΩ/18mΩ MOSFETs and 70μA typical quiescent current. Using the enable pin, shutdown supply current is less than 2μA by entering a shutdown mode.

The output voltage startup ramp is controlled by the slow start pin. An open-drain power good signal indicates the output is within 90% to 95% of its nominal voltage.

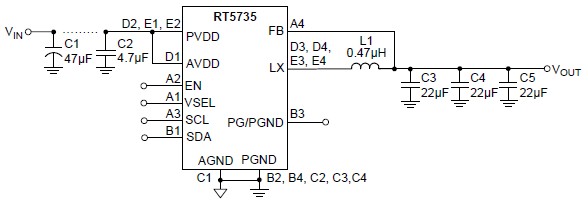

Applications

  • Distributed Power Systems
  • Enterprise Servers, Ethernet Switches & Routers, and Global Storage Equipment
  • Telecom & Industrial Equipment
Key Spec.
RT5735
Status EOL
Vin (min) (V) 2.5
Vin (max) (V) 5.5
Number of Outputs 1
Vout (min) (V) 0.6
Vout (max) (V) 1.39375
Output Adj. Method Digital
Iout (max) (A) 5
Current Limit (typ) (A) 4;4.7;5.4;6.4
Freq (typ) (kHz) 2400
Freq (min) (kHz) 2160
Freq (max) (kHz) 2640
Ext Sync No
Ron_HS (typ) (mOhm) 34
Ron_LS (typ) (mOhm) 18
Iq (typ) (mA) 0.07
Interface I2C
Features Adjustable Current Limit;Adjustable Frequency;Current Mode Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;I2C;Internal Compensation;OCP;OTP;Power Good;Selectable (PSM or PWM);Stable with Ceramic Capacitor;UVP
Package Type WL-CSP1.6x2-20(BSC)
Features
  • 2.5V to 5.5V Input Supply Voltage
  • Current Mode COT Control Loop Design
  • Fase Transient Response
  • Internal 34mΩ and 18mΩ Synchronous Rectifier
  • Highly Accurate VOUT Regulation Over Load/Line Range
  • Robust Loop Stability with Low-ESR COUT
  • Over-Temperature Protection
