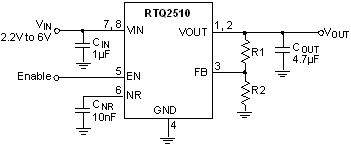

The RTQ2510 is a high performance positive low dropout (LDO) regulator designed for applications requiring very low dropout voltage and ultra high Power Supply Ripple Rejection (PSRR) at up to 1A. The input voltage range is from 2.2V to 6V and the output voltage is programmable as low as 0.8V. A P-MOSFET switch provides excellent transient response with just a 4.7μF ceramic output capacitor. The external enable control effectively reduces power dissipation while shutdown and further output noise immunity is achieved through bypass capacitor on NR pin. Additionally, the RTQ2510 features a precise 3% output regulation over line, load, and temperature variations. The device is available in the VDFN-8L 3x3 package and is specified from -40°C to 125°C.

Applications

  • Telecom/Networking Cards
  • Motherboards/Peripheral Cards
  • Industrial Applications
  • Wireless Infrastructures
  • Set-Top Boxes
  • Medical Equipments
  • Notebook Computers
  • Battery Powered Systems
Key Spec.
RTQ2510-QA
Status Active
Vin (min) (V) 2.2
Vin (max) (V) 6
Vout (min) (V) 0.8
Vout (max) (V) 5.5
Output Adj. Method Resistor
Accuracy (+/- %) 3
Iout (max) (mA) 1000
Iq (typ) (uA) 190
Vdropout @ rated current (typ) (mV) 170 @ 1A
Bias Rail No
Cout Type Ceramic
Charge Pump No
Features AEC-Q100;Adjustable Soft-Start;Enable Input;Extra Low Noise;High PSRR;Industrial;Low Dropout;OCP;Stable with Ceramic Capacitor
Package Type VDFN3x3-8
Features
  • AEC-Q100 Grade 1 Qualified
  • Very Low Dropout : 170mV Typical at 1A
  • Ultra High PSRR : 63dB @ 1kHz, 38dB @ 1MHz
  • Input Voltage Range : 2.2V to 6V
  • Adjustable Output Voltage : 0.8V to 5.5V
  • -40°C to 125°C Operating Junction Temperature Range
  • Excellent Noise Immunity
  • Fast Response Over Load and Line Transient
  • Stable with a 4.7μF Output Ceramic Capacitor
  • Accurate Output Voltage 3% Over Load, Line, Process, and Temperature Variations
  • Enable Control
  • Over-Current Protection
  • Over-Temperature Protection
Part NumberPackage TypePackage Qty.Free SampleDistributorStockBuy From Authorized Distributor

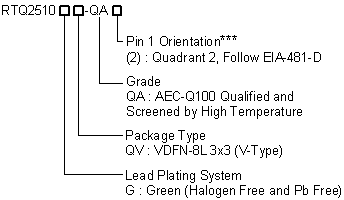

RTQ2510GQV-QA(2)VDFN3x3-81,500 Request Digikey 402 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
Evaluation Board
Part NumberDistributorStockBuy From Authorized Distributor
EVB_RTQ2510GQV-QA(2) Digikey 5 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
