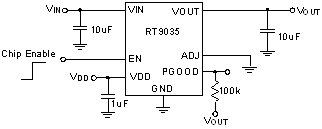

The RT9035 is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and extremely low dropout voltage at up to 3A. It operates with a VIN as low as 1.0V and VDD voltage 3V with programmable output voltage as low as 0.8V. The RT9035 features ultra low dropout that is ideal for applications where VOUT is very close to VIN. Additionally, it has an enable pin to further reduce power dissipation while shutdown and provides excellent regulation over variations in line, load and temperature. The RT9035 provides a power good signal to indicate if the voltage level of VOUT reaches 90% of its rating value. The RT9035 is available in the WQFN-20L 4x4 package with 1.05V, 1.2V, 1.5V, 1.8V and 2.5V internally preset outputs that are also adjustable by using external resistors.
Applications
- Note Book PC Applications
- Motherboard Applications
