Introducing the Richtek Designer™
a powerful online design generator and simulation tool
Features :
• Create Circuits Online :
Richtek has launched a new single circuit design generator and online simulation tool which is
free, easy-to-use and
highly flexible. Based on your requirements, the design tool will generate an interactive schematic complete with user adjustable key components.
• Simulate the Performance of Your Design :
Richtek Designer™ is a quick way to optimize your power design in
only 5 steps.
It will generate a full Schematic, Steady-State Analysis, Transient analysis, Startup analysis, Efficiency graph and Bill of Material (BOM)
in a few minutes.
• Save Your Time :
This tool does not require additional software download and allows you to fine tune your design without a bench prototype.
Online Design Flow :

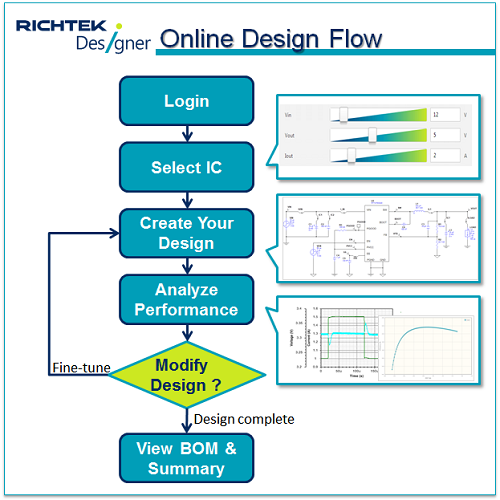

Step 1:
Create a new account or open an existing Richtek design tool account
Start your design immediately after your account is activated.
Step 2:
Automatically find the right part for your design
Enter your power supply requirements (input and output conditions), choose key-features and your preferred packages. Select the most suitable part from the recommended device list.
Step 3:
Create your design schematic without complicated calculations
Based on your application input, a customized schematic is created in seconds. This includes all component values with user-adjustable input and output conditions. You can fine-tune the design by editing component values and load conditions to match your system requirements.
Step 4:
Simulation engine: Analysis & Efficiency
A powerful simulation engine allows you to perform Steady-State Analysis, Transient Analysis, Startup Analysis and Efficiency calculations. The analysis waveform viewer and editor toolbars give you high flexibility to examine the simulation results.
Step 5:
Automatic documentation generation
A complete summary, including Schematic, Electrical Simulation Analysis, Efficiency results and an entire BOM list is generated to document your prototype design.
In this first release, we start with our popular ACOT® Buck converter family
captured in accurate simulation modeling. Richtek will release more simulation models such as Current Mode Buck converters in coming months.
An extensive
Technical Help File
with practical tips and technical background information is available online to quickly get you started.
Please create your account now and start working with
Richtek Designer™
to
get your designs up and running in no time.
New Products

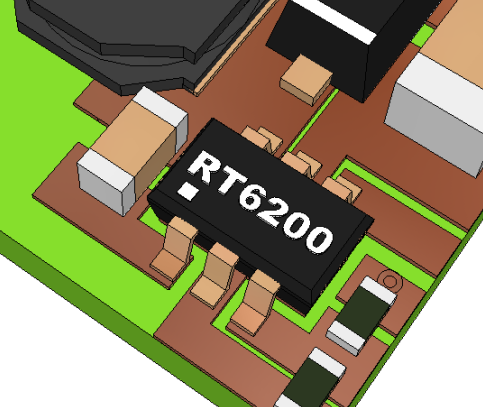

RT6200 0.6A, 36Vin, 1.2MHz Async. Buck converter in SOT-23-6
