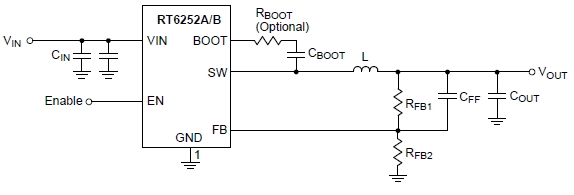

The RT6252A/B is a simple, easy-to-use, 2A synchronous step-down DC-DC converter with an input supply voltage range of 4.5V to 17V. The device possesses an accurate reference voltage and integrates low RDS(ON) power MOSFETs to achieve high efficiency.

The RT6252A/B adopts Advanced Constant On-Time (ACOT®) control architecture to provide an ultrafast transient response with few external components and to operate in nearly constant switching frequency over the line, load, and output voltage range. The RT6252A operates in automatic PSM that maintains high efficiency during light load operation. The RT6252B operates in Forced PWM that helps meet tight voltage regulation accuracy requirements.

The RT6252A/B senses both FETs current for a robust over-current protection (OCP). The device features cycle-by-cycle current limit protection to prevent the device from the catastrophic damage in output short circuit, over-current or inductor saturation conditions. A built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-voltage protection, and over-temperature protection (OTP) to provide safe and smooth operation in all operating conditions.

Applications

  • Set-Top Boxes
  • LCD TVs
  • Home Networking Devices
  • Surveillance
  • General Purpose
Key Spec.
RT6252A RT6252B
Status Active Active
Vin (min) (V) 4.5 4.5
Vin (max) (V) 17 17
Number of Outputs 1 1
Vout (min) (V) 0.765;0.807 0.765;0.807
Vout (max) (V) 7 7
Output Adj. Method Resistor Resistor
Iout (max) (A) 2 2
Current Limit (typ) (A) 3.2;3.35 3.2;3.35
Freq (typ) (kHz) 580 580
Ext Sync No No
Ron_HS (typ) (mOhm) 140 140
Ron_LS (typ) (mOhm) 84 84
Iq (typ) (mA) 0.28;0.295 0.28;0.295
Features ACOT Control;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;OCP;OTP;PSM;SCP;Stable with Ceramic Capacitor;UVP ACOT Control;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Force PWM;OCP;OTP;SCP;Stable with Ceramic Capacitor;UVP
Package Type TSOT-26(FC);SOT-563(FC) TSOT-26(FC);SOT-563(FC)
Features
  • 2A Converter Integrated 140mΩ and 84mΩ FETs
  • Input Supply Voltage Range : 4.5V to 17V
  • Output Voltage Range : 0.765V to 7V
  • Advanced Constant On-Time (ACOT®) Control
    ► Ultrafast Transient Response
    ► Optimized for Low-ESR Ceramic Output Capacitors
  • High Accuracy Feedback Reference Voltage : Typ. ± 1%
  • Optional for Operation Modes :
    ► Automatically Power Saving Mode (PSM) (RT6252A)
    ► Forced PWM Mode (RT6252B)
  • Fixed Switching Frequency : 580kHz
  • Enable Control and Internally Fixed Soft-Start
  • Safe Start-Up from Pre-biased Output
  • Input Under-Voltage Lockout (UVLO)
  • Output Under-Voltage Protection (UVP) with Hiccup Mode
  • High- /Low-side MOSFET OCP and OTP Function
  • RoHS Compliant and Halogen Free
Reference Design
TitleLast UpdateDownload
Richtek Load Transient Tool2022/07/25

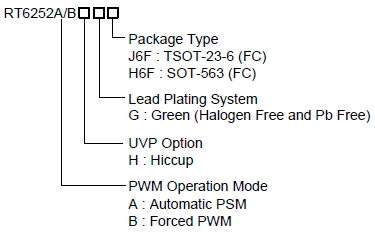

Part NumberPackage TypePackage Qty.Free SampleDistributorStockBuy From Authorized Distributor
RT6252AHGH6FSOT-563(FC)5,000 Request Digikey 3,103 Buy
Mouser 0 Lead-Time: 14 weeks
RT6252AHGJ6FTSOT-26(FC)3,000 Request Digikey 294 Buy
Mouser 2,758 Buy
RT6252BHGH6FSOT-563(FC)5,000 Request Digikey 4,950 Buy
Mouser 0 Lead-Time: 14 weeks
RT6252BHGJ6FTSOT-26(FC)3,000 Request Digikey 965 Buy
Mouser 2,998 Buy
Evaluation Board
Part NumberDistributorStockBuy From Authorized Distributor
EVB_RT6252AHGJ6F Digikey 4 Buy
Mouser 0 Lead-Time: 14 weeks
EVB_RT6252BHGJ6F Digikey 4 Buy
Mouser 0 Lead-Time: 14 weeks
