36V, 0.7A, Synchronous Step-Down Converter Evaluation Board

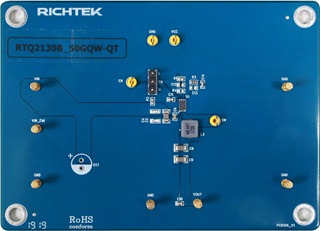

EVB_RTQ2130B-50GQW-QT

Share
ACTIVE

The Evaluation Board demonstrates the RTQ2130B-50 to be designed for a 5V/0.7A output from a 7V to 25V input at 2.1MHz switching frequency. The wide input range makes it suitable for automotive systems and car camera module. The RTQ2130B-50 provides complete protection functions such as input undervoltage lockout, output undervoltage protection, overcurrent protection, and thermal shutdown. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up.

General Description

The Evaluation Board demonstrates the RTQ2130B-50 to be designed for a 5V/0.7A output from a 7V to 25V input at 2.1MHz switching frequency. The wide input range makes it suitable for automotive systems and car camera module. The RTQ2130B-50 provides complete protection functions such as input undervoltage lockout, output undervoltage protection, overcurrent protection, and thermal shutdown. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up.



Performance Sepcification Summary

Summary of the RTQ2130B-50 Evaluation Board performance specificiaiton is provided in Table 1. The ambient temperature is 25oC.


Table 1. RTQ2130B-50 Evaluation Board Performance Specification Summary

Specification

Test Conditions

Min

Typ

Max

Unit

Input Voltage Range

VOUT = 5V

7

--

25

V

Output Current

0

--

0.7

A

Default Output Voltage

--

5

--

V

Operation Frequency

--

2100

--

kHz

Output Ripple Voltage

IOUT = 0.7A

--

10

--

mVp-p

Line Regulation

IOUT = 0.7A, VIN = 7V to 25V

--

±1%

--

--

Load Regulation

VIN = 12V, IOUT = 0.001A to 0.7A

--

±1%

--

--

Load Transient Response

IOUT = 0A to 0.7A, Slew rate = 0.7A/µs

--

±5%

--

--

Maximum Efficiency

VIN = 12V, VOUT = 5V, IOUT = 700mA

--

89.7%

--

--



Power-up Procedure

Suggestion Required Equipment

  • RTQ2130B Evaluation Board
  • DC power supply capable of at least 36V and 1A
  • Electronic load capable of 6A
  • Function Generator
  • Oscilloscope

Quick Start Procedure

The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Caution: Do not turn on supplies until all connections are made. Note: When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor.


Proper measurement equipment setup and follow the procedure below.

1) With power off, connect the input power supply to VIN and GND pins.

2) With power off, connect the electronic load between the VOUT and nearest GND pins.

3) Turn on the power supply at the input. Make sure that the input voltage does not exceeds 36V on the Evaluation Board.

4) Check for the proper output voltage using a voltmeter.

5) Once the proper output voltage is established, adjust the load within the operating ranges and observe the output voltage regulation, ripple voltage, efficiency and other performance.



Detailed Description of Hardware

Headers Description and Placement

一張含有 文字, 螢幕擷取畫面, 電子產品, 電路 的圖片

自動產生的描述


一張含有 螢幕擷取畫面, 電路, Rectangle, 電子產品 的圖片

自動產生的描述

Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at evb_service@richtek.com.


Enable

For automatic start-upn, the EN pin, with high-voltage rating, can be connected to the input voltage by a 100kΩ through the JP1. Shutdown the converter by short EN pin to GND through the JP1.


Test Points

The EVB is provided with the test points and pin names listed in the table below.

Test Point/

Pin Name

Function

VIN

Input voltage positive connection. The power supply must be connected to input connectors, VIN and GND.

EN

Enable test point. The test point can be used to measure the enable signal.

VOUT

Output voltage connection. The load must be connected to output connectors, VOUT and GND.

JP1

EN jumper. Connect EN to ground to disable, connect EN to logic high to enable.

GND

Ground. Input/Output voltage return connection.

SW

Switch node test point. The test point can be used to measure the switching node.

VIN_EMI

Input voltage node before EMI solution. Optional for EMI requirement.

VCC

Linear regulator output test point. The test point can be used to measure the output node of the internal regulator.



Bill of Materials

VIN = 12V, VOUT 5V / 0.7A, fSW = 2100kHz

Reference

Count

Part Number

Value

Description

Package

Manufacturer

U1

1

RTQ2130-50BGQW-QT

RTQ2130B-50

Step-Down Converter

WDFN-8SL 2x3

RICHTEK

C1, C2, C3, EC1, C4

5

NA

NA

Optional for EMI requirement

NA

--

C5

1

GCM31CR71H225KA

2.2µF

Capacitor, ceramic, 50V, X7R, ±10%

1206

MURATA

C6, C7, C10

3

CGA3E2X7R1H104K

0.1µF

Capacitor, ceramic, 50V, X7R, ±10%

0603

TDK

C8, C9

2

GCM31CC71E106KA

10µF

Capacitor, ceramic, 25V, X7S, ±10%

1206

MURATA

C11

1

GCM188R71C105KA

1µF

Capacitor, ceramic, 16V, X7R, ±10%

0603

MURATA

C12

1

NA

NA

Optional

NA

--

C13

1

NA

NA

Optional

NA

--

C14

1

GCE188R71H152KA

1.5nF

Capacitor, ceramic, 50V, X7R, ±10%

0603

MURATA

L1, L2

2

NA

NA

Optional for EMI requirement

NA

--

L3

1

WE-74437324047

4.7µH

Inductor, SMT,

ISAT = 4A, 95mΩ

4.45mmx 4.06mmx1.8mm

Wurth Elektronik

R1

1

NA

short

NA

0603

--

R2

1

WR06X1003

100kΩ

Resistor, chip, 1/10W, 1%

0603

WALSIN

R3

1

WR06X3742

37.4kΩ

Resistor, chip, 1/10W, 1%

0603

WALSIN

R4

1

NA

NA

NA

NA

--



Typical Applications

EVB Schematic Diagram

Technical Document Image Preview


1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple.

2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance.


Measure Result

Output Ripple Measurement

Load Transient Response

Technical Document Image Preview

Technical Document Image Preview

Power On from EN

Power Off from EN

Technical Document Image Preview

Technical Document Image Preview

Short Circuit Response – Short and Recovery

Strating Progile III (Cold cranking)

Technical Document Image Preview

Technical Document Image Preview

Efficiency vs. Output Current

Output Voltage vs. Output Current

Technical Document Image Preview

Technical Document Image Preview

Output Voltage vs. Input Voltage

Technical Document Image Preview

Note: When measuring the input or output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip directly across the output capacitor.



Evaluation Board Layout

Figure 1 to Figure 4. are RTQ2130B Evaluation Board layout. This board size is 110mmx80mm and is constructed on four-layer PCB with 1 OZ. Cu on the outer layers and 1 OZ. Cu in the inner layers.

一張含有 文字, 螢幕擷取畫面, 圖表, 數字 的圖片

自動產生的描述

Figure 1. Top View (1st layer)


一張含有 螢幕擷取畫面, 文字, Rectangle, 圖表 的圖片

自動產生的描述

Figure 2. PCB Layout—Inner Side (2nd Layer)


一張含有 螢幕擷取畫面, 文字, Rectangle, 圖表 的圖片

自動產生的描述

Figure 3. PCB Layout—Inner Side (3rd Layer)


一張含有 螢幕擷取畫面, 文字, 圖表, Rectangle 的圖片

自動產生的描述

Figure 4. Bottom View (4th Layer)

Title Last Update Share Download
Evaluation Board User Guide 2023/10/30
Bill of Materials 2023/10/30
Schematic 2023/10/30
Gerber File 2023/10/30
RTQ2130B-QT
RTQ2130B-QT
