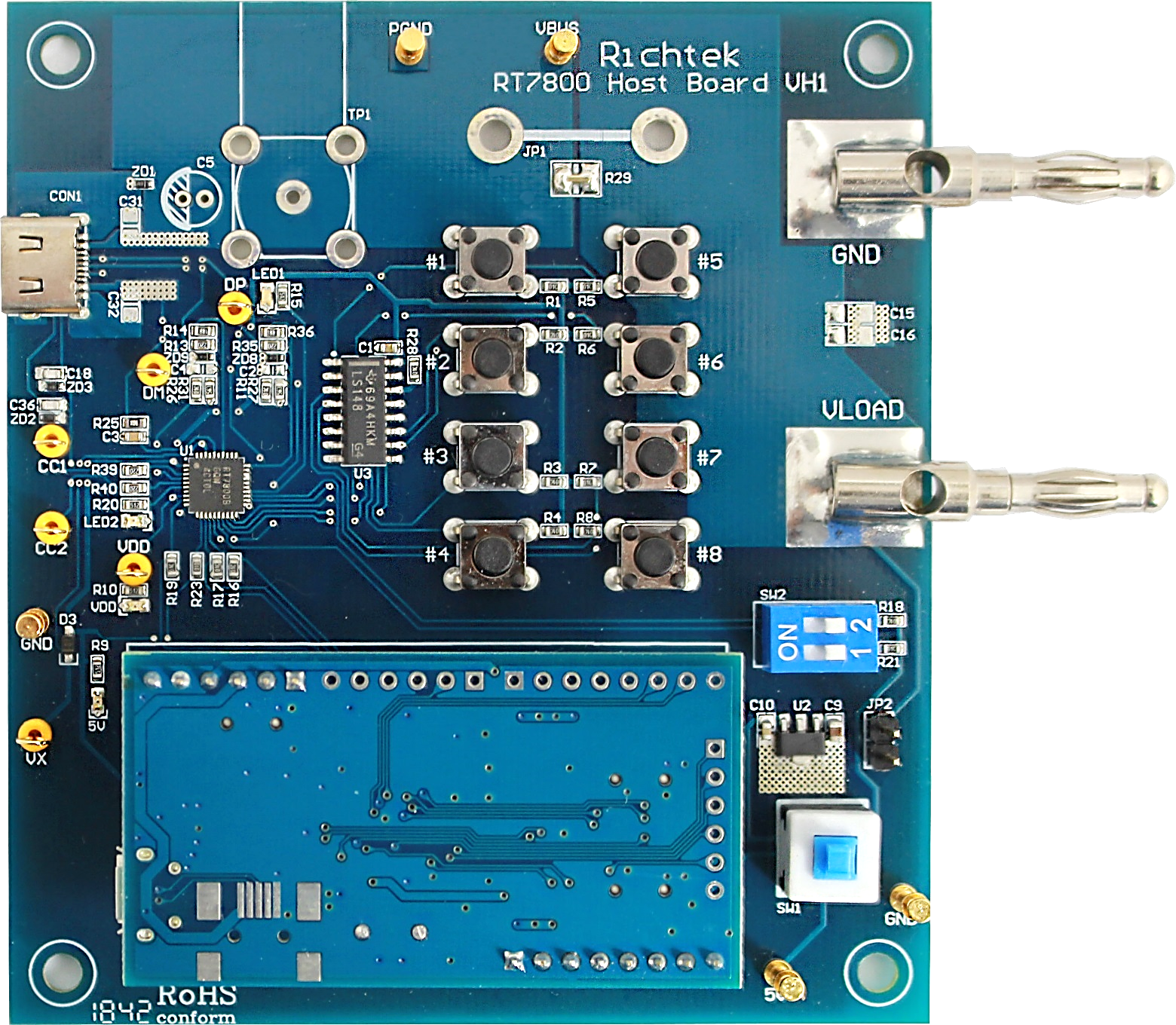

RT7800 Host Board

RD0007

Share

RT7800 host board is a developing assistance tool to develop USB PD power supply, including USB PD adapter and USB PD car charger.

Key function :

  • Support USB PD and multiple protocols
  • Could auto detect the power profile of the connected USB PD power supply and simply push the bottom to change the power profile
  • Or connect to PC and use GUI to set required power profile

Demonstration video : https://www.youtube.com/watch?v=52BI9-A9BiQ

RT7800 Host Board Manual

General Description

RT7800 host board is a developing assistance tool to develop USB PD power supply, including USB PD adapter, USB PD car charger.



Key function

1. Support USB PD and multiple protocols.

2. Could auto detect the power profile of the connected USB PD power supply and simply to push the bottom to change the power profile.

3. Or connect to PC and use GUI to set required power profile.

Evaluation Board

Technical Document Image Preview

Title Last Update Share Download
User Manual 2020/12/02
